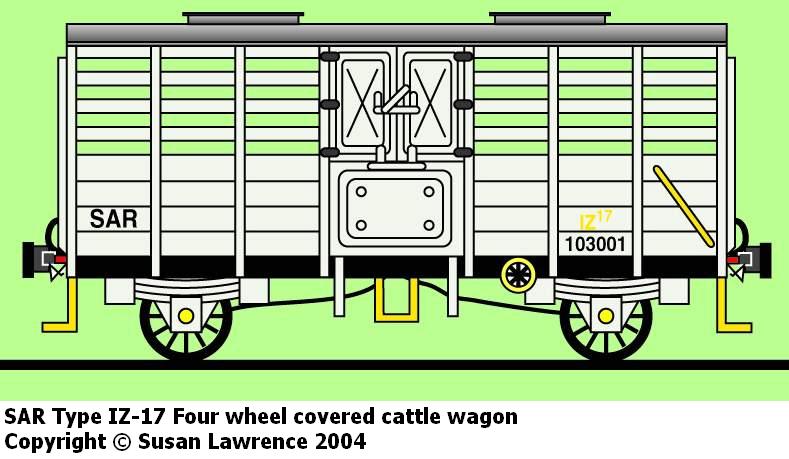

SAR Type IZ-17 Four wheel covered cattle wagon

Click on picture for larger image

SAR Type IZ-17 Four wheel covered cattle wagon

Numbers:  103001-104500, 171501-173000

Introduced 1958
Building continued until 1959

Load 20 tons21 tons
Tare 11 tons 10 cwt average
Volume 1 188 cubic feet

Note:
All information and data is based on the type as it was in 1966.
Drawing is to a scale of 120:1


Copyright © Susan Lawrence 2005
