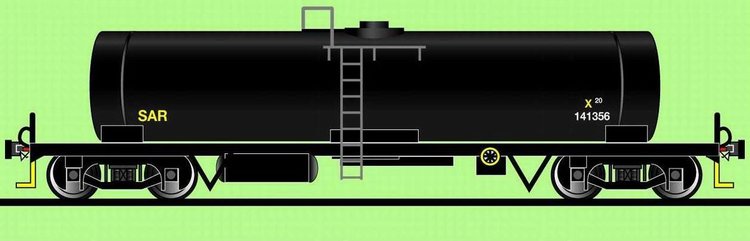

SAR Type X-20 Bogie water tank wagon

Click on picture for larger image

SAR Type X-20 Bogie water tank wagon

Numbers:  141356 - 141390, 156801 - 156865

Introduced 1956
Building continued to 1958
Load 34 tons (6,800 gallons water)
Tare 22 tons 9 cwt average

Note:
All information and data is based on the type as it was in 1966.
Drawing is to a scale of 120:1


Copyright © Susan Lawrence 2005
