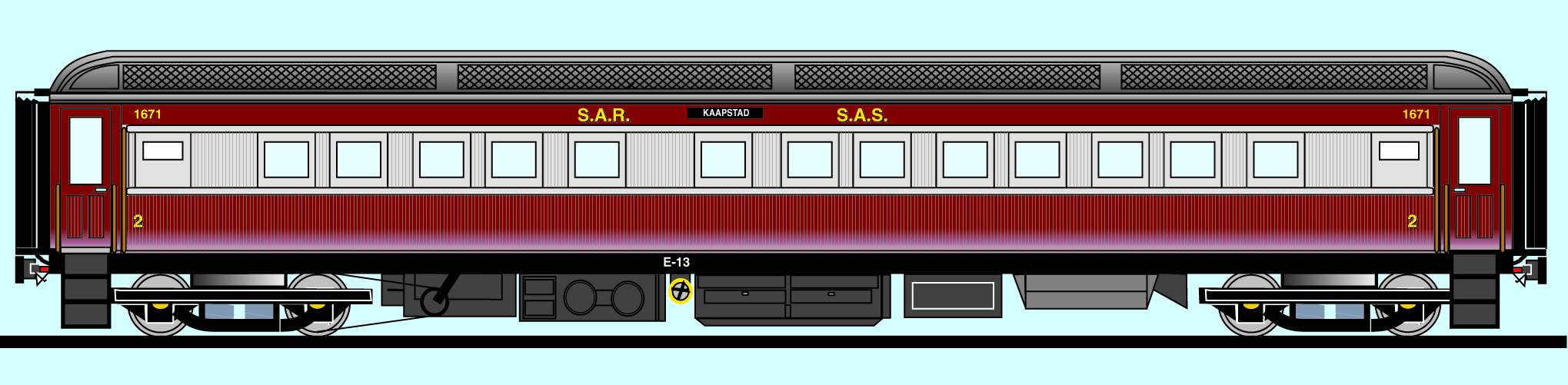

SAR Type E-13 Second Class Mainline Coach Drawing

SAR Type E-13 Second class mainline coach

Click on picture for larger image

Numbers: 1671-1730, 1732-1734, 1736-1747, 1749-1760, 1762-1840, 2116-2150, 8701-8729, 8731-8830

Built SAR Workshops, Durban, Pretoria, Bloemfontein and Uitenhage
(Coaches 1681-1710 and 1806-1840 were imported)
Introduced 1933
Building continued until 1933

Seat 39 x 2nd class passengers or sleep 39 x 2nd class passengers

11 x 5.5 inch journals, except 1806-1840, 2116-2150 and 8701-8830, which had roller bearings

Tare varies between 39 tons 15 cwt and 42 tons 14.4 cwt

Note:
All information and data is based on the type as it was in 1966.

Note also that apartheid was being enforced at that time and coaches designated
with a -C suffix had the relevant markings as shown in these drawings.
